Standard Reinforcement And Concrete Works Details

Standard Reinforcement| Concrete Works Details |Concrete Combine quantitative relation for (1 ) Concrete

Standard Reinforcement And Concrete Works Details

The design of a concrete combine involves a preparation method during which the combination of parts creates the desired strength and toughness for the concrete structure. As a result, every part within the combine contains completely different properties, it’s not a straightforward task to create a good concrete combine.

Concrete Combine quantitative relation for (1 ) Concrete

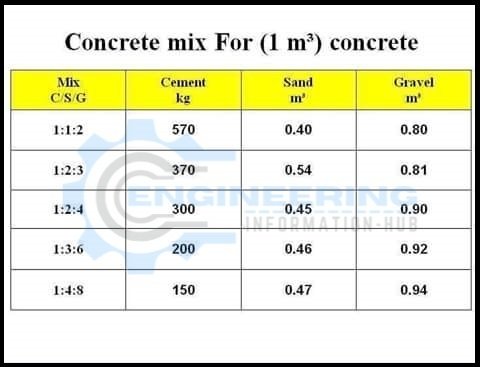

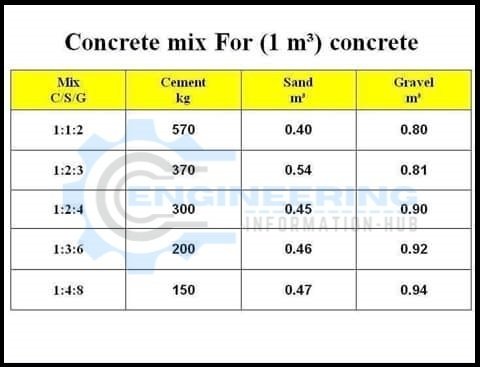

Concrete Combine quantitative relation for (1 m3) Concrete

Mix C/S/G

Cement (kg) Sand (m3)

Gravel (m3)

1:1:2

570 0.40

0.80

1:2:3 370 0.54

0.81

1:2:4

300 0.45

0.90

1:3:6

200 0.46

0.92

1:4:8

150 0.47

0.94

Slump vary of Specific Applications

The concrete slump check measures the consistency of contemporary concrete before it sets. it’s performed to examine the workability of freshly created concrete, and thus the convenience with that concrete flows.

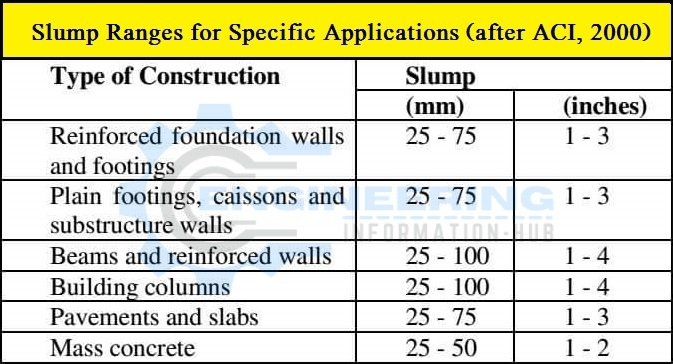

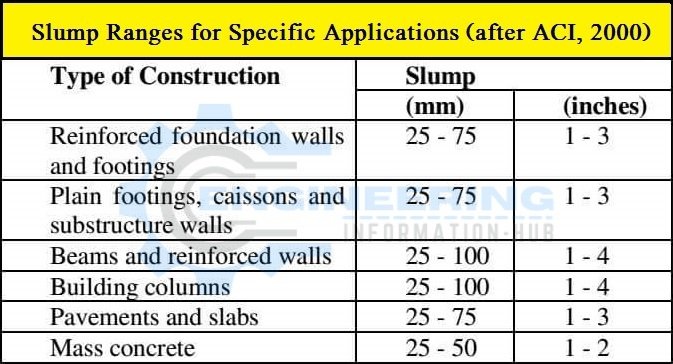

Slumps Ranges of Specific Applications

Type of Construction

SLUMP

(mm)

(inches)

Reinforced Foundation Walls & Footing

25 – 75

1 – 3

Plain Footing, Caissons & Substructure Walls

25 – 75

1 – 3

Beams & Reinforced Walls

25 – 100

1 – 4

Building Columns

25 – 100

1 – 4

Pavement & Slabs

25 – 75

1 – 3

Mass Concrete

25 – 50

1 – 2

Typical Reinforcement Weight

The specific weight is conjointly called Unit Weight, it’s physical amount is just like density outlined as weight per unit volume or length.

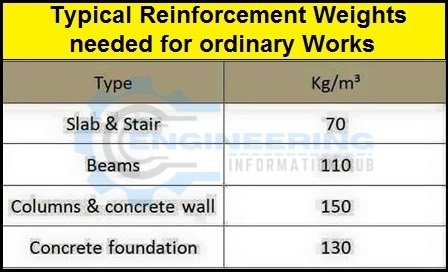

Typical Reinforcement Weights wanted for standard Works

Type

Kg/m3

Slab & Stairs

70

Beams

110

Columns & Concrete Walls

150

Concrete Foundation

130
